Imatest Ultra-Wide Field of View Test Fixture

SKU: SFR-W8

For cameras with field of view wider than 160°, it becomes extremely difficult to test the resolution and chromatic aberration across the imaging plane with a flat test chart system. The SFR-W8 test fixture offers 180° FOV image testing with back-lit targets. Using Imatest software, obtain meaningful results from an eSFR ISO center target and 8 SFRreg targets in predefined locations. The fixture is fully adjustable in X, Y, & Z directions, and includes a geared tripod head with adjustable pan, tilt, and rotation (actual tripod head not pictured).

Download Specifications (PDF)

Wide Field of View Equipment

Ultra-wide Imaging

Lead time approximately 7-8 weeks.

Availability: Available to Order

$12,100.00

Imatest Ultra-Wide Field of View Test Fixture

SKU: SFR-W8

$12,100.00

Details

Lens to target distance (for all 9 targets): 100cm (39.4”)
8 SFRreg targets included: 25.3 cm x 17.4 cm (6.85” x 9.96”) - Mounted on Acrylic
Illuminated with Imatest LED Light Panel - Size A
eSFR ISO center target included: 63.4 cm x 43.2 cm (24.96” x 17.87”) - Mounted on Acrylic
Illuminated with Imatest LED Light Panel - Size D
Overall Test Fixture dimensions: 226.1cm x 156.2cm x 124.7cm (89.03” x 61.5” x 49.11”)
Field of view coverage: >180°
Overall Test fixture weight: 33kg (73 lbs)
Input Voltage Requirement: 100-240V 50/60 HZ
Voltage Requirement: 110 V / 220 V
Maximum power draw: 68 Watts
Color Temperature / Light Spectrum Options: 3100K, 4100K, 5100K, 6500K, NIR 850nm, NIR 940nm
Available in multi or single channel
Intensity (min to max): 100 to 1,000 lux, NIR = 2 to 90 Watts/m2

  • Fully adjustable in XYZ directions to accommodate any imaging system
  • Camera Position fully adjustable in XYZ axes to accommodate any imaging system
  • Geared tripod head with Pan, Tilt, and Rotation adjustments included
  • Power strip and wire management provided
  • Sturdy extruded aluminum frame
  • Detailed assembly guide provided with all necessary hardware
  • Custom configurations available. Contact testing@imatest.com

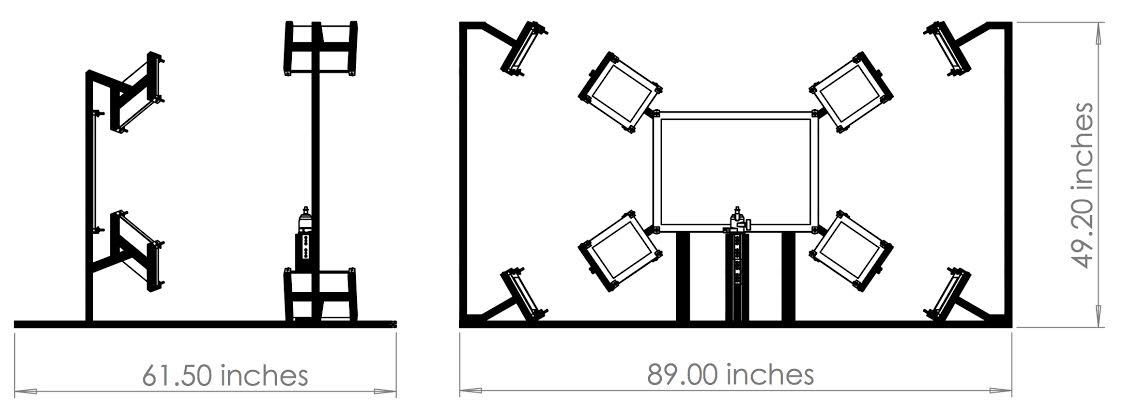

Imatest Wide FOV Test Fixture Dimension
