Kino Flo FreeStyle 31 LED DMX Lighting System


Kino Flo FreeStyle 31 LED lights have 8.5x37" (21.5 x 94cm) panels that make them ideal for providing uniform glare-free illumination for Imatest's full range of test charts, up to 44x78" (111.7 x 198cm). This product is a set of two lights with 36" stands.

With the "white menu," the light provides high quality illumination over a Kelvin range from 2700K tungsten to 6500K daylight, and is dimmable over a 150:1 range.

The fixture uses a quick-release system to remove the LED panel from the plastic housing, and it is easy to mount on a stand. Additional menu options for studio photographers allow operation over a Kelvin range of 2500K tungsten to 9900K daylight, the simulation of blue & green screens, sodium vapor and mercury vapor lamps, over 100 well-known lighting gels and, and a wide range of RGB settings.

The FreeStyle 31 LED comes with standard DMX and wireless DMX (Lumen Radio®), 24VDC input, and universal voltage input 100-240VAC (1.25 Amps at 120VAC).

Availability: Available to Order


Kino Flo FreeStyle 31 LED DMX Lighting System




  • Fixture size 40.5x3.5x11" (103x9x28cm)
  • Kelvin presets
  • Dial-in color temperature control between 2700K-6500K
  • Extended color palette from 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB control
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC (FreeStyle 31)
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio®)
  • DMX Auto Terminate
  • Remote fixture with built-in barndoors
  • Removable LED panel with center mount and molded corner mounts
  • Fixture includes removable 90° Honeycomb Louver
  • Honeycomb louver also available in 60° as accessory
  • Removable Center Mount
  • KinoGrip Center Mount
  • Lightweight, slim profile
  • Mounts to stand, light enough to be hand-held
  • Controller mounts onto fixture or operates remotely with extension cable
  • Optional Soft Case or Hard Case can be added to your order.

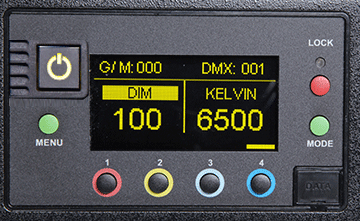

LED Controller - White Mode

  • Kelvin presets & custom settings, 2700K-6500K
  • Universal input 100VAC-240VAC or 24VDC
  • Manual & DMX Dimming w/ Auto Terminate
  • DMX wireless (Lumen Radio)
  • Green/Magenta control
  • Flicker-free, quiet operation
Gels/Hue Color Mode

Gels/Hue Color Mode

    In addition to White mode features, Gels/Hue Color mode includes access to:
  • Extended Kelvin color range 2500K-9900K
  • Kino Flo presets and Gels
  • Dial in any color through Hue Angle and Saturation control
RGB Color Mode

RGB Color Mode

    Additional RGB Color Mode includes:
  • Individual Red, Green, Blue (RGB) control
  • Works with Apps with predetermined RGB presets or color wheels
